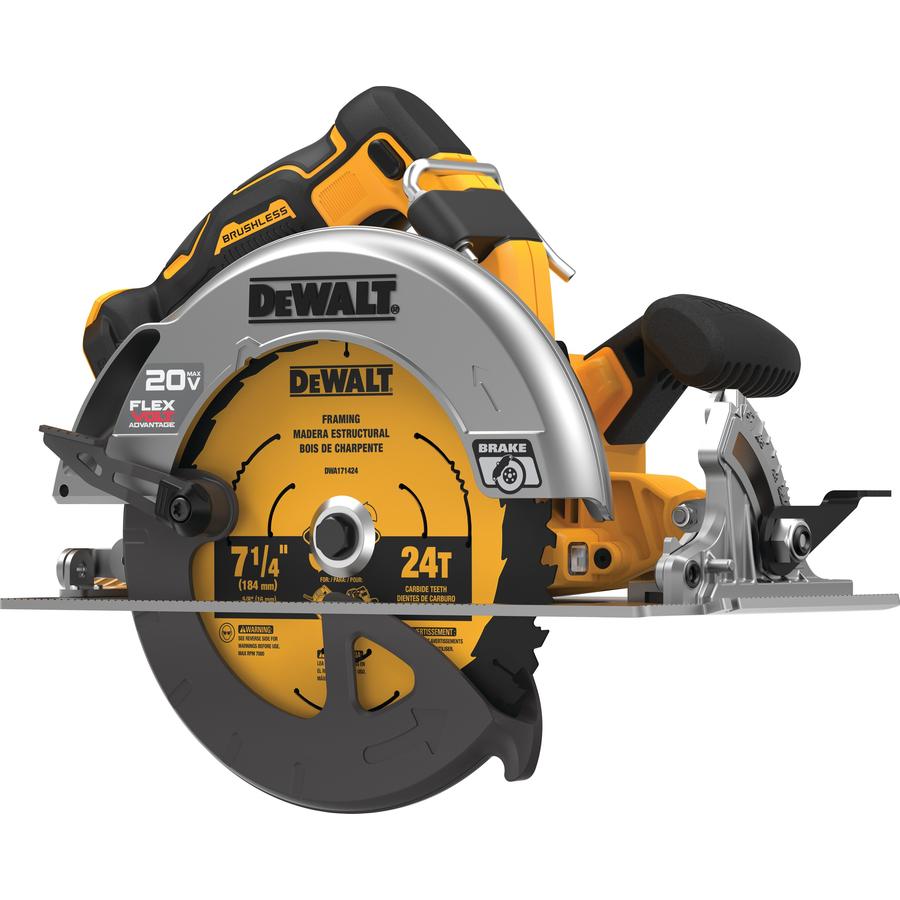

DEWALT 20V MAX* 7-1/4 in. Brushless Cordless Circular Saw with FLEXVOLT ...
Item #:
DCS573B
Manufacturer Item: DCS573B
Get more power with the DEWALT 20V MAX brushless tools with FLEXVOLT Advantage tool technology. The 7-1/4 in. Circular Saw has up to 77% more power when paired with a DCB606 FLEXVOLT battery vs a DCB205 20V MAX battery. Battery and charger sold separately.
281.99
Each
Quantity:
| Quantity | Price |
| 1 | 281.99 |
Features
- UP TO 77% MORE POWER when paired with FLEXVOLT batteries
- FASTER CUTTING: Powerful brushless motor delivers 5,500 RPM for faster cutting
- Maximum depth of cut of 2-9/16 in. at a 90°
- Maximum depth of cut of 2 in. at a 45°
- ELECTRIC BRAKE stops the blade after the trigger is released
- INCREASED VISIBILITY: Bright LED increases visibility and cut accuracy
- EASY STORAGE: Integrated rafter hook for quick and easy storage
- Tool Connect Chip Ready: Chip pocket accepts Tool Connect Chip DCE042 and connects with Tool Connect Site Manager app for easy asset management on the jobsite. (DCE042 sold separately)
- COMPATIBLE with all DEWALT 20V MAX and FLEXVOLT Batteries
- MINIMIZES DUST: Optional dust port allows connection to a dust extractor to minimize dust during cutting (DWE575DC Dust Port sold separately).
Specifications
| Length | 15.68 in |
| Width | 8.3 in |
| Height | 9.562 in |
| Weight | 10.15 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Net Lit-Ion Y/N | No |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | Using a DCB606 FLEXVOLTbattery vs DCB205 DEWALT 20V MAX battery (batteries sold separately) |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | CSA Listed | UL Listed |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Adjustable Depth | Yes |
| Arbor Size | 0.625 |
| Bare Tool | Yes |
| Bevel Capacity | 57 |
| Blade Diameter | 7 1/4 in In. |
| Blade Location | Right |
| Blade Qty | 1 |
| Case Type | No Case Included |
| Dust Collection | Yes |
| Engine | Brushless |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Laser Guide | No |
| Integrated Work Light | Not Featured |
| Maximum Cut Depth @ 45 Deg. | 2 |
| Maximum Cut Depth @ 90 Deg. | 2.5625 |
| Maximum Speed | 5500 RPM Rpm |
| Saw Drive Type | Sidewinder |
| Shoe Material | Aluminum |
| Product Finish | Yellow/Black/Silver |
Category 9090-0100-0003
Blade Diameter
7 1/4 inches
Maximum Speed
5500 revolutions per minute
