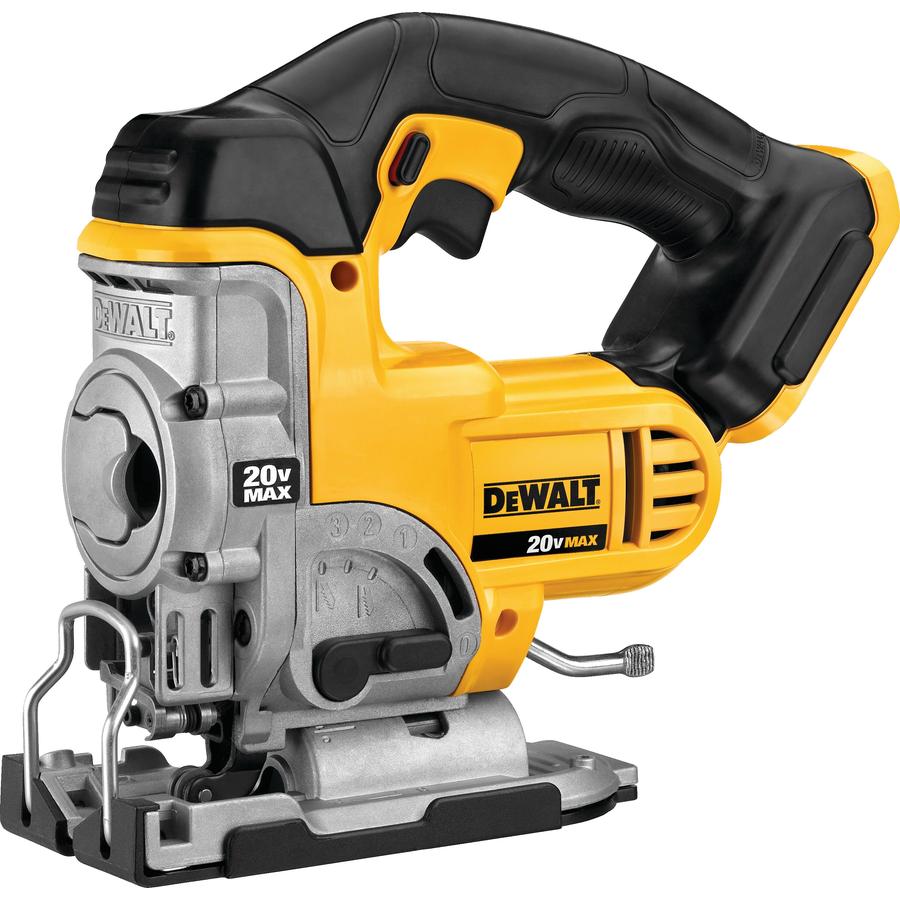

DEWALT 20V MAX* Cordless Jig Saw (Tool Only)
Item #:
DCS331B
Manufacturer Item: DCS331B
This 20V MAX Jig Saw has an all metal, lever-action keyless blade clamp designed for quick and easy blade changes and an all-metal keyless shoe bevel with four detents at 0 degree, 15 degree, 30 degree, and 45 degree to make bevel adjustments easy. The variable-speed trigger of the cordless jigsaw provides up to 3,000 strokes per minute to easily adjust speeds during cutting and 4-position orbital action for wood cutting. A removable shoe cover helps protect materials from scratches and the d...
| Quantity | Price |
| 1 | 199.99 |
This 20V MAX Jig Saw has an all metal, lever-action keyless blade clamp designed for quick and easy blade changes and an all-metal keyless shoe bevel with four detents at 0 degree, 15 degree, 30 degree, and 45 degree to make bevel adjustments easy. The variable-speed trigger of the cordless jigsaw provides up to 3,000 strokes per minute to easily adjust speeds during cutting and 4-position orbital action for wood cutting. A removable shoe cover helps protect materials from scratches and the dust blower helps users see where they're cutting. Battery and charger sold separately.
Features
- All-metal, lever-action, keyless blade change allows for quick and easy blade changes
- All-metal, keyless shoe bevel with detents at 0°, 15°, 30°, and 45° provides versatility for easy bevel cutting
- 4-position orbital action provides control of cut quality and speed
- Adjustable dust blower keeps line of cut clear of chips
- Variable speed 0-3,000 spm for versatility in a multitude of materials and applications
- Anti-slip comfort grip for increased comfort and control
- Accepts T-shank jig saw blades for optimal holding power and professional results
Specifications
| Length | 10.5 in |
| Width | 9.12 in |
| Height | 3.73 in |
| Weight | 5.6 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushed |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 3 Ah Ah |
| Charger Included | No |
| Amperage | 8 |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | CSA Listed |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Bare Tool | Yes |
| Bevel Capacity | 45 |
| Blade Qty | 1 |
| Blade Stroke Length | 1 In |
| Blade Type | Jig Saw T-Shank |
| Case Type | N/A (no case) |
| Cutting Width | 1.5 In |
| Engine | Brushed |
| Handle Type | D-Ring |
| Housing Material | Metal/Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Laser Guide | No |
| Integrated Work Light | Not Featured |
| Kit | No |
| Length Of Stroke | 1 in In. |
| Lock-On Switch | Yes |
| Maximum Capacity Steel | 1.5 In |
| Maximum Capacity Wood | 1.5 In |
| Maximum Metal Cutting Capacity | 1.5 In |
| Motor Bearings | 20 V MAX |
| Number Of Orbital Setting | 4 |
| Orbital Action | Yes |
| Quick/Tool Less Changing | Yes |
| Saw Type | Top / D-Handle |
| Scrolling Action | No |
| Shoe Material | Metal |
| Strokes Per Minute | 3000 |
| Switch Type | Lock-On |
| Variable Speed | Yes |
Category 9090-0100-0003
Stroke Length
1 inch
Cutting Width
1.5 inches
