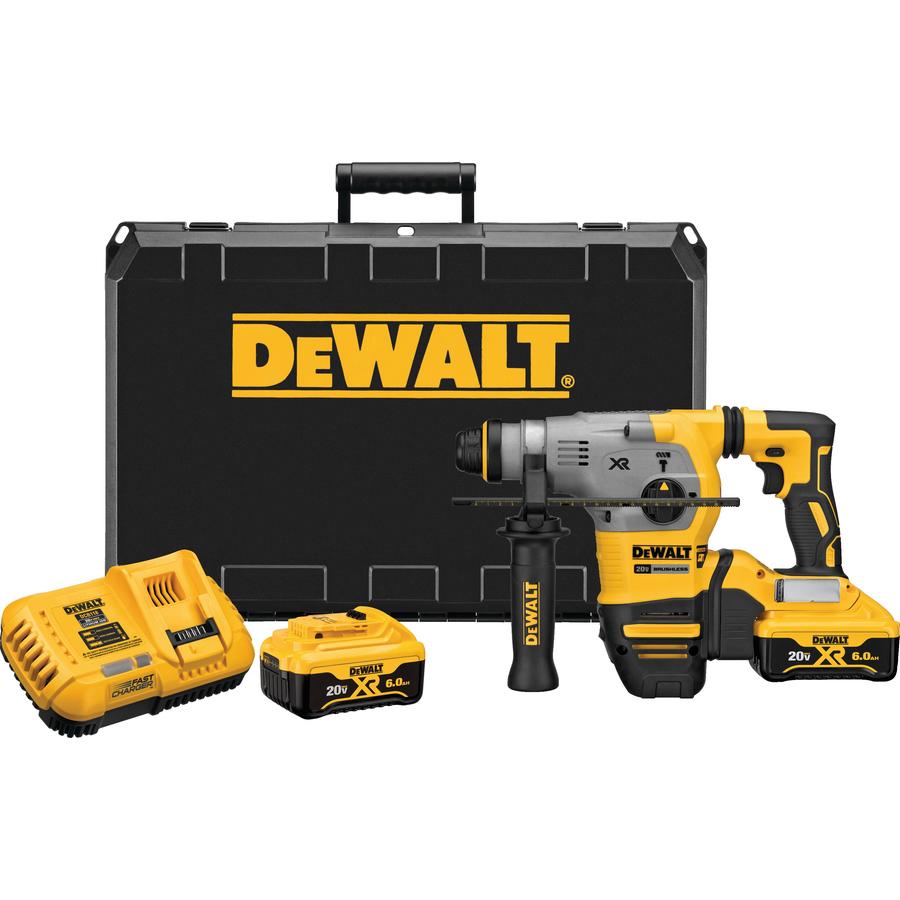

Black & Decker DEWALT 20V ROTARY HAMMER SDS+
| Quantity | Price |
| 1 | 699.99 |
The 20V MAX XR Brushless 1-1/8-inch Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.5 Joules of impact energy. The lightweight design makes this DEWALT cordless hammer drill ideal for structural connections, beam & column anchorage, rod hanging, seismic & safety attachments, cable tray & strut mounting, and steel stanchion mounting. It is part of the PERFORM and PROTECT product line, integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS ACTIVE VIBRATION CONTROL System. E-CLUTCH protects the user in bind-up situations by stopping the rotation of the bit. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This hammer becomes OSHA Table 1 Compliant when used with the DWH304DH On Board Extractor.
Features
- 3.5 Joules of impact energy for fast drilling in concrete
- Anti-Rotation E-CLUTCH System protects the user in bind up situations by stopping the rotation of the bit
- Lightweight design makes this tool ideal for structural connections, beam & column anchorage, rod hanging, seismic & safety attachments, cable tray & strut mounting, and steel stanchion mounting
- Shocks active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
- Brushless motor and durable German-engineered mechanism for efficient performance and runtime
- OSHA Table 1 compliant when paired with DWH304DH On Board Extractor
- Rotating Dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip
Specifications
| Height | 5.118 in |
| Length | 23.032 in |
| Width | 15.354 in |
| Weight | 19.800 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | Yes |
| Battery Type | 20V MAX* Lithium Ion |
| Battery Qty | 2 |
| Battery Weight | 2 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 6 Ah Ah |
| Watt Hours | 120 |
| Net Lit-Ion Y/N | Yes |
| Charger Included | Yes |
| Charger Type | Jack Plug |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Hazmat | Li-Ion (101-300 WH) |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | No Certifications or Listings |
| Claims Needed | No |
| Hazmat Code | A2 |
| Case Type | Hard |
| Chuck Capacity | 2.5 in |
| Chuck Size | 1-1/8 in |
| Chuck Type | Keyless |
| Handle Material | Plastic |
| Handle Type | D-Handle |
| Housing Material | Plastic |
| Impact Energy | 3.5 Joules |
| Impacts / Blows / Blasts Per Min | 4480 |
| Individual Vs. Set (Syndigo) | SET |
| Integrated Work Light | Not Featured |
| Keyless/Keyed | Keyless |
| Maximum Speed | 1500 RPM Rpm |
| Reversible | No |
| Side Handle Included | No |
| Thin Wall Bit Capactiy | Yes |
| Variable Speed | Yes |
