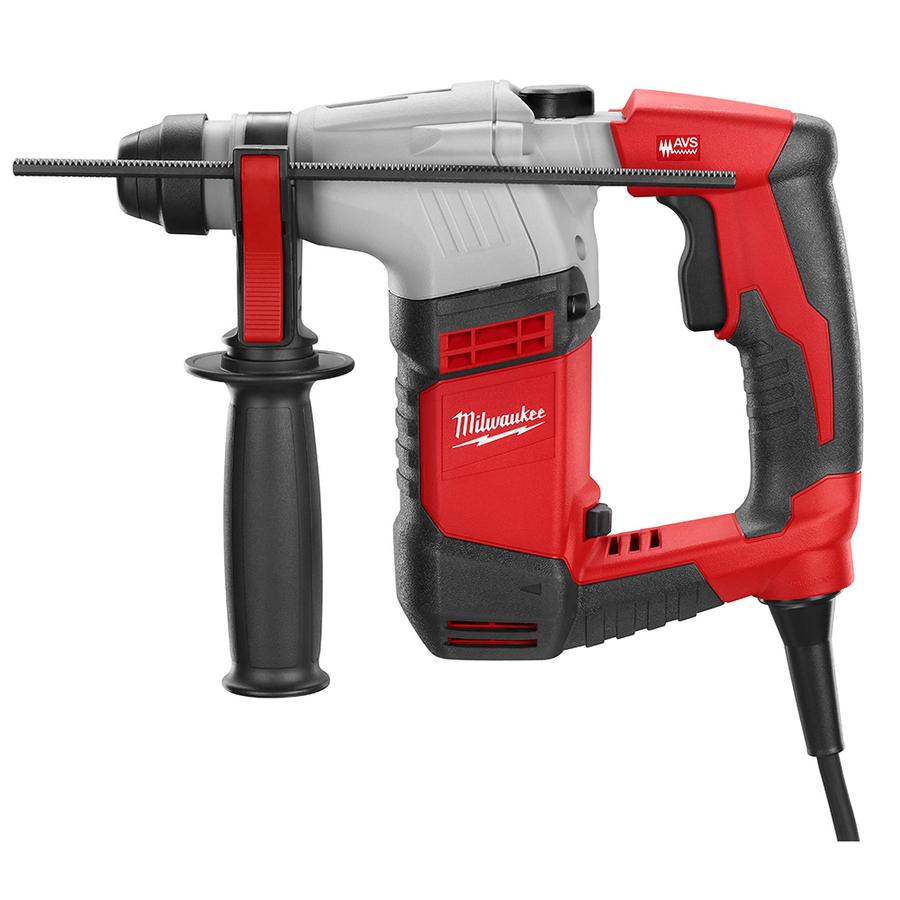

Milwaukee Tool 5/8 in. SDS Plus Rotary Hammer Kit

Item #: 5263-21
Manufacturer Item: 5263-21
The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster  with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet it's powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-...
9.9900
Each
Quantity:
48-22-8473

The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster  with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet it's powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-vibration system provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.

Features

  • Powerful 5.5 amp Motor: Delivers 0-3, 700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65% faster drilling speeds
  • Lightweight 4.6 lb design: reduces fatigue when you drill overhead and in horizontal applications
  • Compact 10.9 in. profile: lets you work more efficiently in tights spaces
  • 2-Mode operation: choose rotary hammer or rotation only for added versatility
  • AVS - anti vibration system: delivers maximum comfort by minimizing vibration
  • Mechanical clutch: protects the motor when the bit binds

Specifications

Powered Tool Power SourceElectric - Corded
Cordless / CordedCorded
Amperage (A)5.5
Voltage (V)120.0
Blasts Per Minute - Maximum (BPM)4400
Chuck Capacity.625
Chuck Size5/8 in
Chuck DesignKeyless
Impact Energy1.5 ft-lbs
Maximum RPM3700.0
Net Tool Weight4.6 lbs
Length15.0 Inches
Width12.5 Inches
Height5.0 Inches
Cord Length10.0 ft
Color / FinishRed with black Overmold
MaterialMechanical Clutch; Metal Gear Box
Variable SpeedYes
Product Storage IncludedCase
Chisel Lock PositionsYes
Electronic Speed ControlNo
Handle TypeD-Handle
ReverseYes
Side HandleYes
Thin Wall Core Bit CapacityYes
Core Bit Capacity2.125000 in
Type of Modes2-Mode Operation: Rotary hammer and rotation only for maximum versatility
Thru-Hole Capacity0.625000 in
Maximum Concrete Cutting Capacity2.125000 in
Maximum Metal Cutting Capacity0.0000 in
Maximum Wood Cutting Capacity0.0000 in
CSA CertifiedNo
ETL ListedNo
UL ListedNo
Package Contents(1) 5/8" SDS Plus Rotary Hammer Kit (5263-21); (1) Side Handle; (1) Carrying Case
